Αναλυτική Περιγραφή

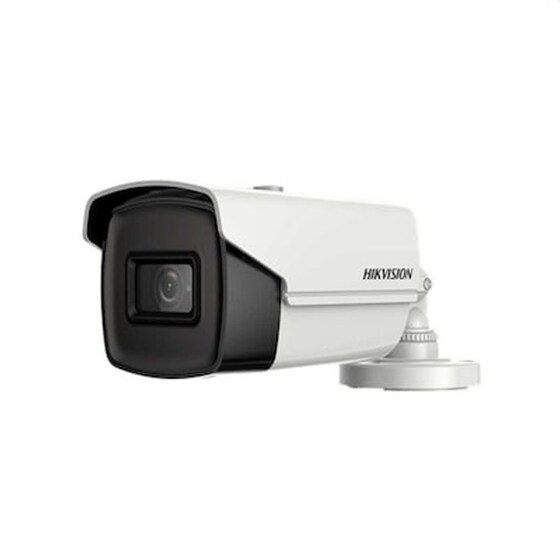

HIKVISION DS-2CE16U1T-IT3F Κάμερα Bullet 2.8mm 8Mpixels TURBOHD HDTVI 4K UltraHD EXIR 60m IP67 με μεταλλικό περίβλημα
Κάμερα Bullet 4in1 8MP (4K), εξωτερικού χώρου, με επιλεγόμενη έξοδο HDTVI/CVI/AHD/CVBS, σταθερό ευρυγώνιο φακό 2.8 mm (γωνία θέασης 102.2°), υπέρυθρο φωτισμό EXIR 2.0 εμβέλειας ως 60 m, υψηλή ευαισθησία, 105 dB DWDR, OSD menu Up The Coax (UTC), μεταλλικό μπροστινό κάλυμμα και βάση, υπόλοιπο σώμα πλαστικό, IP67, κατανάλωση 5.3 W, (ΠxBxY) 87x218x82 mm.
ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ:
Camera
Lens2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lensHorizontal Field Of View102.2° (2.8 mm), 79° (3.6 mm), 50.8° (6 mm), 37.73° (8 mm), 23.96° (12 mm)Lens MountM16Day & NightIR cut filterSynchronizationInternal synchronizationAngle AdjustmentPan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360°Image Sensor8.29 megapixel progressive scan CMOSSignal SystemPAL/NTSCFrame RateTVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps CVI: 8MP@12.5fps, 8MP@15fps AHD: 8M@12.5fps, 8M@15fps CVBS: 960H P/NResolution3840 (H) × 2160 (V)Min. IlluminationColor: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IRShutter TimePAL: 1/12.5 s to 1/50,000 s NTSC: 1/15 s to 1/50,000 s
Menu
AGCYesDay/Night ModeAuto/Color/BW (Black and White)White BalanceAuto/ManualBacklight CompensationYesDWDR (Digital Wide Dynamic Range)105 dBLanguageEnglishFunctionsBrightness, Sharpness, DNR, Mirror, Smart IR, HLC
Interface
Video Output1 HD analog outputSwitch ButtonTVI/AHD/CVI/CVBS
General
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)Power Supply12 VDC ±25% *You are recommended to use one power adapter to supply the power for one camera.Power ConsumptionMax. 5.3 WProtection LevelIP67MaterialFront cover: Metal Main body: Plastic Bracket: MetalIR RangeUp to 60 mCommunicationUp the coax, Protocol: HIKVISION-C (TVI output)Dimensions81.9 mm × 86.7 mm × 217.9 mm (3.22" × 3.41" × 8.58" )WeightApprox. 435 g (0.96 lb.)
